Extruded Corn Stick Line

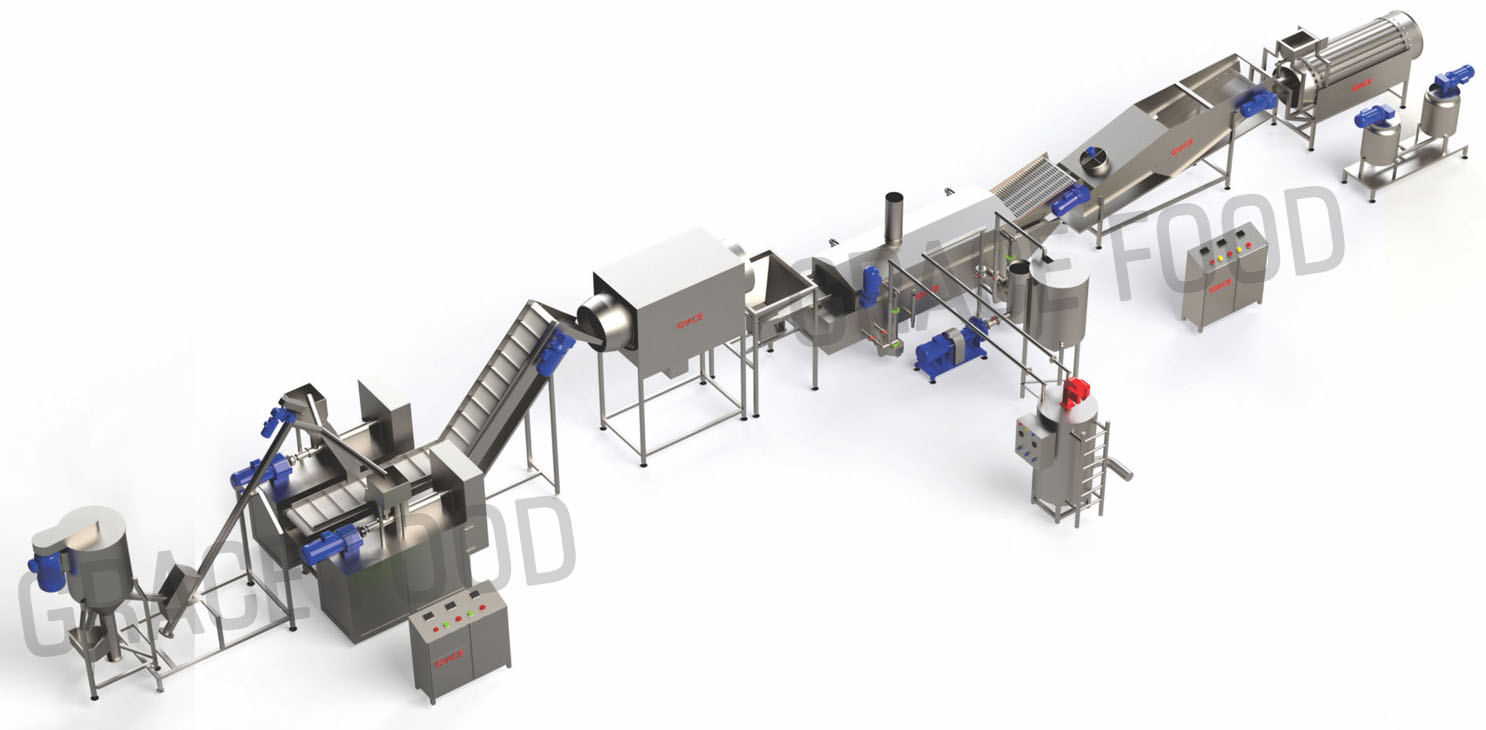

Rotary Head Extruder
Extruded Corn Stick production line produces one of the most popular snack food products in the world - the fried corn curl. Mostly famous for brands of Fried corn curl are Cheetos, Nik Naks, Kurkure etc. This extruded corn snack is extruded in the form of random collets and then processed through continuous snack fryer, seasoning equipment, finally packed by Automatic Packaging Machine...
Extruded Fried Corn Snack Production is manufactured in India by Grace Food Processing & Packaging Machinery®. These snacks are also known by the name Snack Random Collets Production Lines and Cheetos Production line around the world. Process is to mix the corn meal and other ingredients in the Raw Material Corn Meal Mixer. After mixing corn meal is extruded at high temperature to produce stick shaped collets or Raw Kurkure stick. These random collections are passed through a continuous Snack Food Fryer.
After cooking in Fryer it went to the flavouring section for Seasoning and coating process. Various types of seasoning are used all over the world, some snack manufacturers like to have dry powder dosing dust-on over the snack. Some want to prepare the slurry of oil and seasoning powder mixed together to spray over the snack. After the flavouring process the snack is ready to pack in flexible packaging film with the automatic packaging machine.
Technical Specifications
Technical Specifications
| Model | GTL-100-KSL | GTL-300-KSL | GTL-500-KSL |
|---|---|---|---|
| Output | 100 kg/hr | 300 kg/hr | 500 kg/hr |
| Power Required | 32 HP approx. | 70 HP approx. | 95 HP approx. |
| Floor Space | 1500 Sq. ft. | 1800 Sq. ft. | 2000 Sq. ft. |
| Material of construction | AISS-304 Grade SS | AISS-304 Grade SS | AISS-304 Grade SS |
| Oil Heating Fuel Option | Electric, Diesel or Gas | Diesel or Gas | Diesel or Gas |
festures
Single Screw Extruder
Single Screw Extruder
Mixer
Our universal mixer, ribbon mixer, can mix a wider range of powder raw materials. A double action ribbon mixes the raw materials while water is gently added. Cleaning of a ribbon mixer is easy and for accessibility it is recommended have a locally built platform.
Extruder: Twin Screw Extruder models
During extrusion, your solid raw materials are mixed, heated, cooked, shaped – all in one process. Our extruder are configured to the specific characteristics of your raw material formulation and the requirement of your end products. We offers various types and capacities in extrusion, our twin screw extruder gives the capacities of 100-150 kg/hr. We offer controls to run the extrusion process for various shapes. All extruders run variable speed, feed control, full water cooled process.
DRYER: belt dryer
The more sophisticated dryer is the belt dryer: drying by hot air. In a heat exchanger, on top of the dryer, hot air is made with a gas or fuel burner or by electricity. Where applicable, heating is always indirect (no fumes to reach the snacks). Hot air is forced through the bed of snacks and returned to the burner, depending on moisture level a percentage of hot air is re-used. The rest is replaced by fresh air.
Flavouring equipment (slurry and dry dosing)
Snacks need a coating to become attractive, this is done in a coating drum immediately after drying. The coating drum comes in various sizes and has on the inside a self-cleaning profile. To ensure uniform residence time, strips are mounted in the drum. The rotation speed of drum are variable.
Slurry Preparation
Coating is done by slurry: the mix of oil and flavour powder. For this purpose the slurry mixer and spraying attachments.
Buffer silo
A very smart solution to cope with the huge volume flow coming from the extrusion line. It is not recommended to stop (or reduce) the extruder capacity. Most effective and efficient is to leave the equipment running, producing the required snacks and just collect them in a buffer silo, prior to packaging. We use the vertical buffer silo with vibration feeder at the exit. You can also opt for belt bunkers and other types of buffers. It is vital here that the system is closed to limit exposure of snacks to outside air and humidity.
